V Slot NEMA 23 Linear Actuator (Belt Driven)

Precise | Affordable | Modular | Open Source

Made and Supported in India

Shipped as fully assembled with Nema 23 Stepper Motor

Description

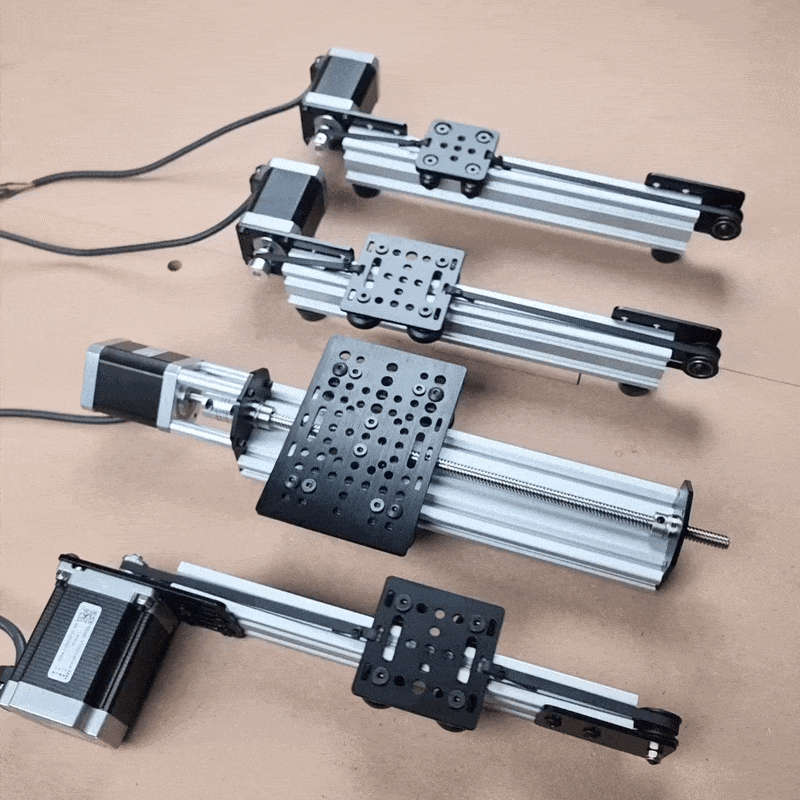

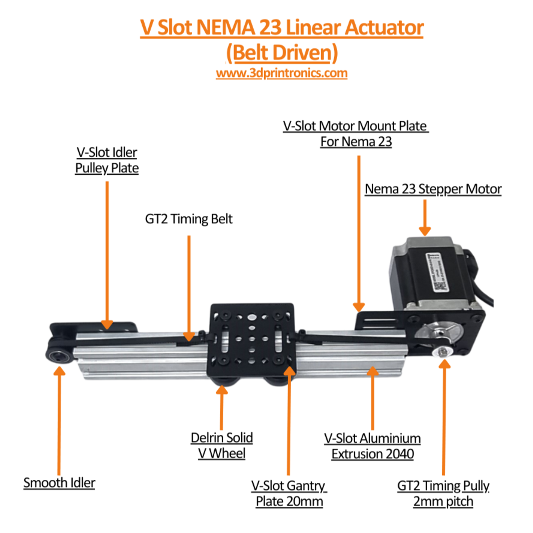

The V Slot NEMA 23 Linear Actuator (Belt Driven) is a great component in any linear system.

This is a very stable, precise, modular and affordable linear actuator which can be used for automation, DIY CNC/3D Printers and other cool stuff.

Take advantage of this amazingly affordable linear motion system today!

It can be easily integrated into any existing system or any new design due to the inherent modularity of the V Slot system.

Download 3D CAD File

Click below to Download Files. Files will also be mailed to you once your checkout is complete.

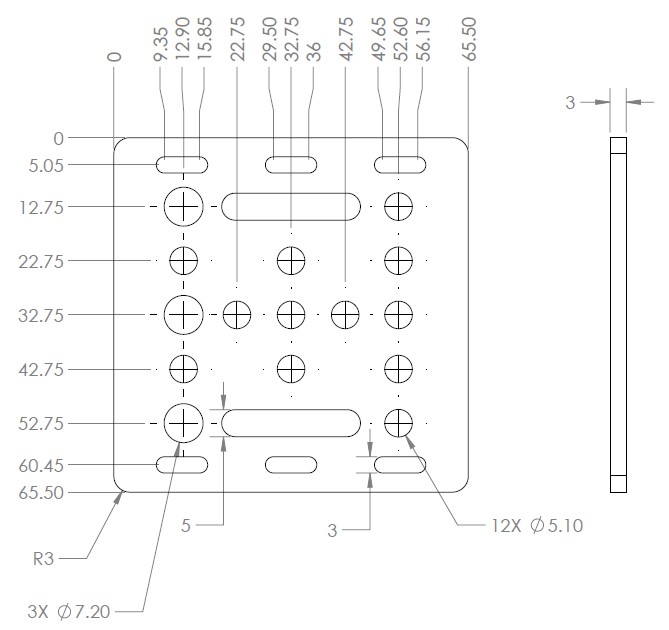

1. Plate Drawing

2. CAD (Step file) of Plate

3. CAD (Step file) of Actuator (500mm Length)

4. Click here for a quick online 3d view of this actuator full assembly (grabcad).

Specifications

• Travel Distance - 250mm is 107mm, 500mm is 345mm, 1000mm is 845mm, 1500mm is 1190mm, 2000mm is 1845mm
• Accuracy - 0.10 mm ~ 0.20 mm
• Positioning Accuracy - ~ 0.565mm
• Max Speed - ~8000 mm/min
• Belt Drive - GT2 Timing Belt (5mm width), 2mm pitch.
• Stepper Motor - Nema 23 (Leadshine 57CM23 3A, 23kg/cm torque). Click here for all details of this motor.
• Aluminium Extrusion Used - 2040 V Slot anodized. Click here for dimensions of the extrusion.
• Gantry Plate Used - V Slot 20mm gantry plate (Black anodized), Material - aluminium, Thickness - 3mm.

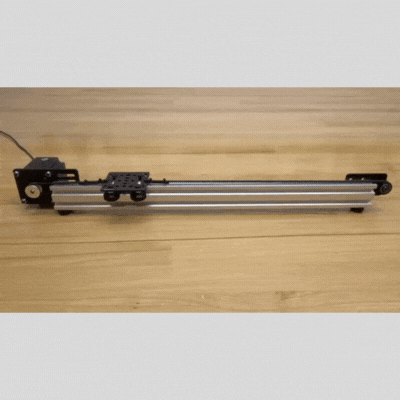

• Horizontal Load Capacity : Maximum 8 kgs (See Video Below)
• Vertical Load Capacity : Maximum 5 to 6 kgs

Optional Items

• Length - What length of the actuator you need. Please note it is the total length of the actuator. Travel length/stroke length has been given in the specifications section.
• Stepper Driver - it is required for operating the stepper motor. A stepper motor needs a stepper driver for running it. We offer DM54E stepper driver from Leadshine. Click here to know more about it. You are free to use your own stepper drivers (if you have). Just match its specifications with the data sheet of the stepper motor & make sure it is suitable for this motor.

• Power Supply - A power supply is required for providing DC current to the Motherboard + stepper driver + stepper motor. We offer Meanwell LRS 350-24 power supply which is a 24VDC, 350 watts and 14 amps psu. Click here to know more about it.You are free to use your own power supply (if you have). Just match its specifications with the data sheet of the stepper motor & mother board. Make sure it is suitable for both of them.

• Openbuilds BlackBox Motion Control System X32 - It is a plug & play motherboard/controller for 3 axis motion system. It can run 4 stepper motors (X,Y & Z). No external drivers are required as it has inbuilt drivers. Just connect a power supply and stepper motors to it and start running your motors with openbuilds control software.

• Cable For Motor - Use this high quality, 4 core, shielded cable for extending stepper motor cables. These are shielded cables hence electromagnetic interference is minimal.Use these Shielded Cables for connecting your stepper motors to motherboard & Drivers.
