V Slot NEMA 17 Linear Actuator (Lead Screw)
SKU 01146
₹4,391.00
Total Length
Stepper Driver
Power Supply
Openbuilds BlackBox Motion Control System X32
Cable for motor
In stock
1
Save this product for later

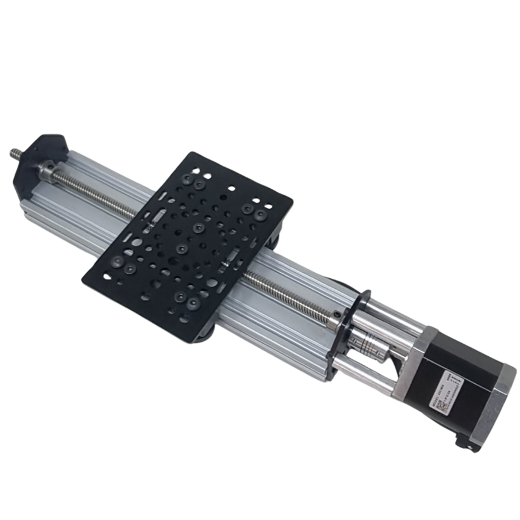

V Slot NEMA 17 Linear Actuator (Lead Screw)
Product Details
Brand: 3DPrintronics
Dispatch Time: 2 to 3 working days from the date of payment
Delivery Time: 4 to 5 working days after dispatch
Courier Used: Delhivery/Bluedart/Smartr
V Slot NEMA 17 Linear Actuator (Lead Screw)
Precise | Affordable | Modular | Open Source
Made and Supported in India
Shipped as fully assembled with Nema 17 Stepper Motor
Description
The V Slot NEMA 17 Linear Actuator (Lead Screw) is a great component in any linear system.
This is a very stable, precise, modular and affordable linear actuator which can be used for automation, DIY CNC/3D Printers and other cool stuff.
Take advantage of this amazingly affordable linear motion system today!
It can be easily integrated into any existing system or any new design due to the inherent modularity of the V Slot system.
Download 3D CAD File
Click below to Download Files. Files will also be mailed to you once your checkout is complete.
3. CAD (Step file) of Actuator (500mm Length)
4. Click here for a quick online 3d view of this actuator full assembly (grabcad).
Specifications
- Travel Distance - 250mm is 150mm, 500mm is 400mm, 1000mm is 900mm, 1500mm is 1400mm
- Accuracy - 0.10 mm ~ 0.20 mm
- Positioning Accuracy - ~ 0.075mm
- Max Speed - ~3000 mm/min
- Drive - 8mm acme lead screw Tr8x8, 2mm pitch, 4 start, 8mm dia, material : SS
- Stepper Motor - Nema 17 Stepper Motor (Leadshine 42CM08, 0.8Nm Holding Torque).Click here for more details of the motor.
- Aluminium Extrusion Used - 2060 V Slot anodized.Click here for dimensions of the extrusion.
- Gantry Plate Used - V Slot Universal Gantry Plate, material : aluminium (anodized), thickness : 3mm.
- Horizontal Load Capacity : Maximum 7 to 8 kgs
- Vertical Load Capacity : Maximum 5 to 6 kgs
Optional Items
- Length - What length of the actuator you need. Please note it is the total length of the actuator. Travel length/stroke length has been given in the specifications section.
- Stepper Driver - it is required for operating the stepper motor. A stepper motor needs a stepper driver for running it. We offer DM54E stepper driver from Leadshine. Click here to know more about it. You are free to use your own stepper drivers (if you have). Just match its specifications with the data sheet of the stepper motor & make sure it is suitable for this motor.
- Power Supply - A power supply is required for providing DC current to the Motherboard + stepper driver + stepper motor. We offer Meanwell LRS 350-24 power supply which is a 24VDC, 350 watts and 14 amps psu. Click here to know more about it.You are free to use your own power supply (if you have). Just match its specifications with the data sheet of the stepper motor & mother board. Make sure it is suitable for both of them.
- Openbuilds BlackBox Motion Control System X32 - It is a plug & play motherboard/controller for 3 axis motion system. It can run 4 stepper motors (X,Y & Z). No external drivers are required as it has inbuilt drivers. Just connect a power supply and stepper motors to it and start running your motors with openbuilds control software.
- Cable For Motor - Use this high quality, 4 core, shielded cable for extending stepper motor cables. These are shielded cables hence electromagnetic interference is minimal.Use these Shielded Cables for connecting your stepper motors to motherboard & Drivers.
C Beam, V Slot and all related accessories are manufactured in India as per the opensource designs of www.openbuilds.com . We are not affiliated to openbuilds in any manner.
