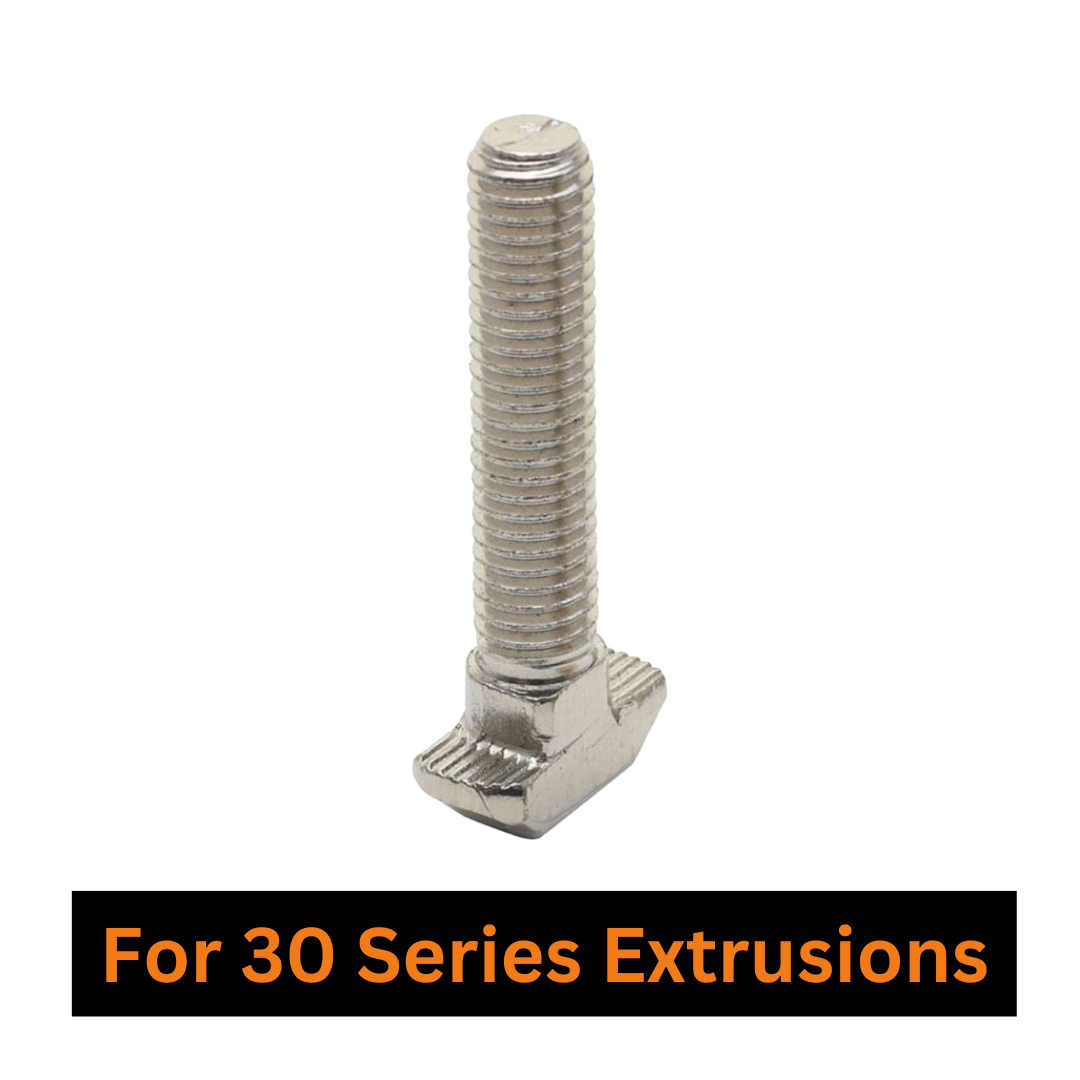

T Bolt for 30 Series Aluminum Extrusions

The special T-nut for aluminum frames is widely used for fastening and connection of aluminum frames; it is made of commonly used domestic carbon steel material, and the surface is nickel-plated, which is beautiful and anti-rust. Suitable for tightening and connection between aluminum alloy frames and brackets. Easy assembly, cost-effective choice.

Install anywhere along the profile, rotate and lock into position.The tapered neck simplifies assembly, and the T-bolt is self-aligning in the V/T-slot.

The positioning groove on the end of the T-bolt visually indicates when it is properly positioned in the T-slot.

Can be used with - T Slot Aluminium Extrusion 3030 (Silver), MISUMI T Slot Aluminium Extrusion 3060

Specifications

Use M6 T bolt with - M6 Flanged Nut

Material : Carbon Steel

Surface treatment : Nickel Plated

Threads available - M6

Lengths available - 16, 25mm (Please select length from the options)

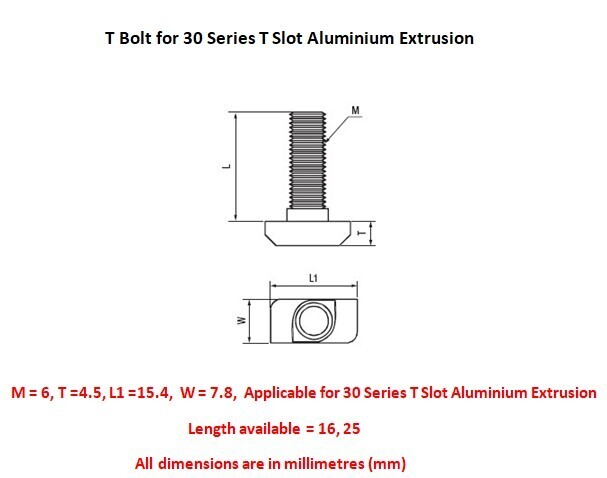

Dimensions

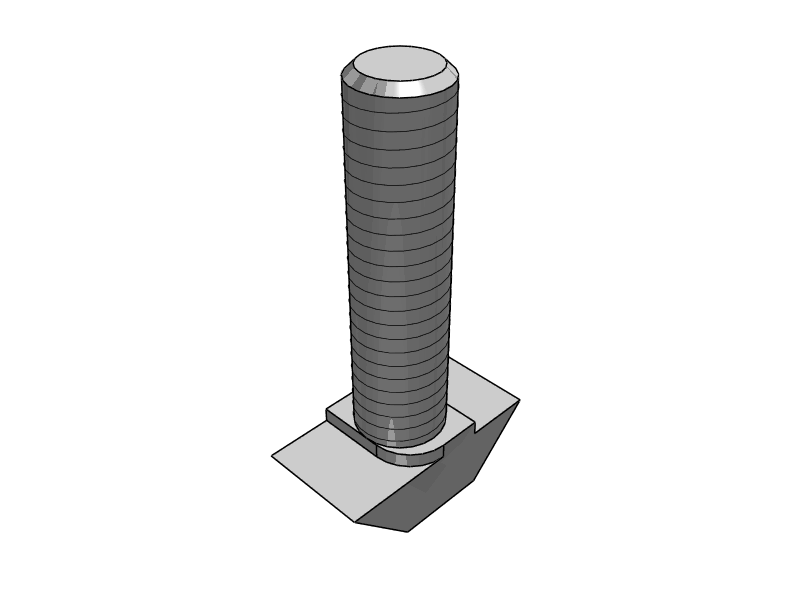

3D File Download

Click on the image below to download the 3d file
