Straight Grained Knobs
SKU 01373
₹110.00
Select Thread
Select Length
In stock
1
Save this product for later
Straight Grained Knobs
Product Details
Brand: 3DPrintronics
Dispatch Time: 2 to 3 working days
Delivery Time: 3 to 4 working days
Courier Used: Delhivery/Bluedart
GST(Tax): 18% on checkout
Straight Grained Knobs
Enhance your aluminium extrusions with our premium Straight Grained Knobs, designed for both functionality and aesthetics.
Crafted from high-quality materials, these knobs feature a sleek, straight grain finish that complements any modern design.
Made from phenolic resin, these knobs can endure temperatures ranging from 0 to 80°C, making them suitable for various high-temperature applications.
Complies with GB standards, providing a higher torque force for secure locking, reducing the risk of loosening and enhancing operational reliability.
Technical Specifications
Shape : Straight Grained Knobs
Thread Size Available : M4, M5, M6, and M8
Material Knobs : Phenolic Resin
Material Screw : Steel Grade Q235 with zinc plating.
Applications
Knobs Screws are commonly used in fastening, assembly, adjustment, clamping and so on.
Ideal for use in industry, offices, retail environments, kitchens or any space that requires a stylish and functional knob for easy access.

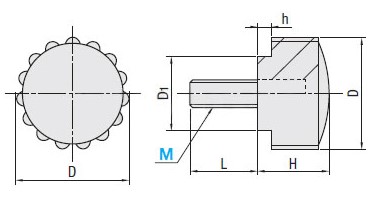

Dimensional Drawing
| Thread (M) | L Selection | D | H | D1 | h |
| M4 | 10, 15, 20 | 16 | 10.5 | 11 | 2 |
| M5 | 10, 15, 20 | 20 | 13.5 | 14 | 4 |
| M6 | 10, 15, 20 | 25 | 16.5 | 16.5 | 5 |
| M8 | 15, 20 | 32 | 20 | 18 | 6.5 |
All measurement units are in : millimeters

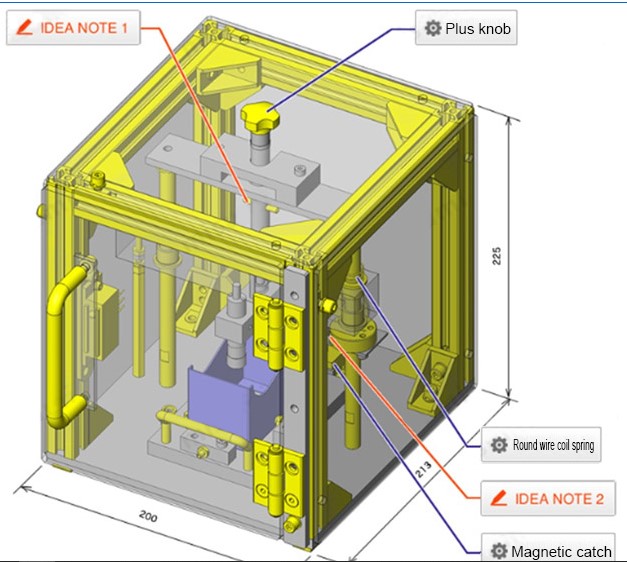

Usage Example
