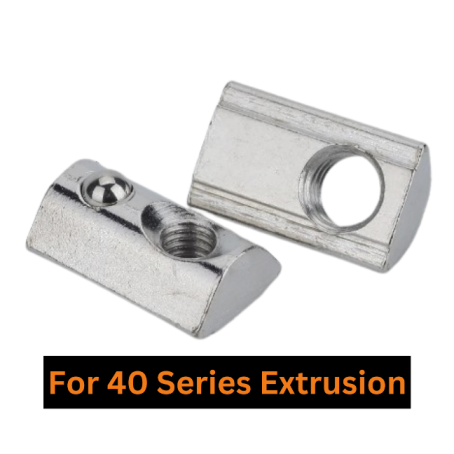

Spring T Nut for 40 Series Aluminium Extrusions

Spring T Nut for 40 Series Aluminium Extrusions

• Compatible With : 4040, 4080 T Slot Aluminium Extrusion
• Thread Sizes Available : M8, M6, M5, M4, M3
• Material : Steel
• Surface Treatment : Nickel Plating (anti rust)

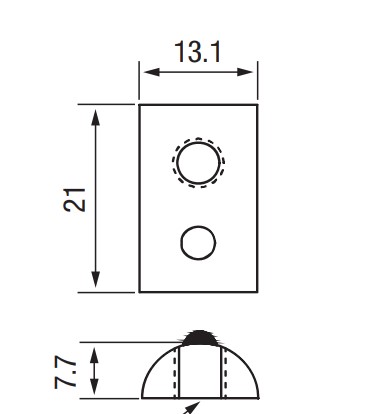

Dimensions

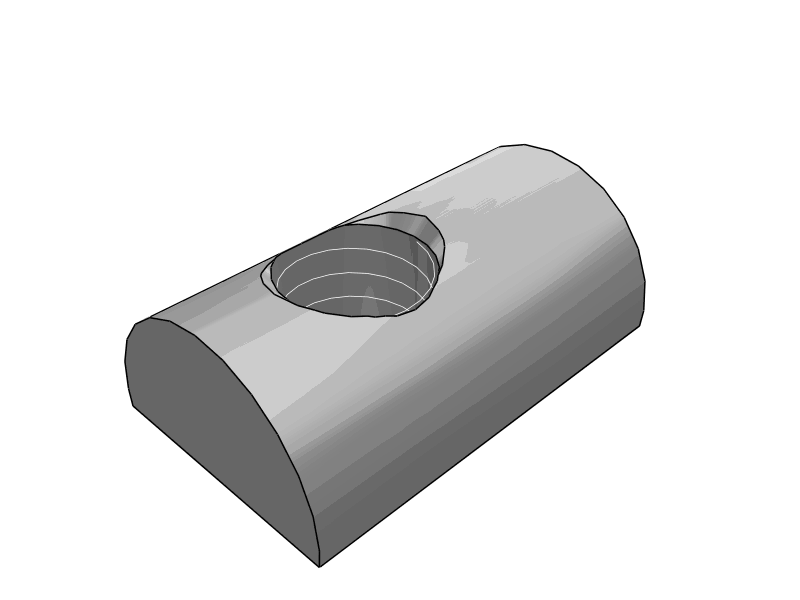

3D File Download

Click on the image below to download 3d file

How to use

• These are used during assembly or after assembly on extrusions which are vertical.
• The spring prevents them from sliding under the force of gravity, hence making them quite handy in applications where you do not want movement of T nuts.
• To move these, simply push down on the T nut and slide.
