Spring T Nut for 30 Series Aluminium Extrusions

Spring T Nut for 30 Series Aluminium Extrusions

• Compatible With : 3030, 3060 T Slot Aluminium Extrusion
• Thread Sizes Available : M3, M4, M5, M8
• T Nut Material : Steel (S10C Equivalent)
• Surface Treatment : Trivalent Chromate
• Ball Material : SUS304

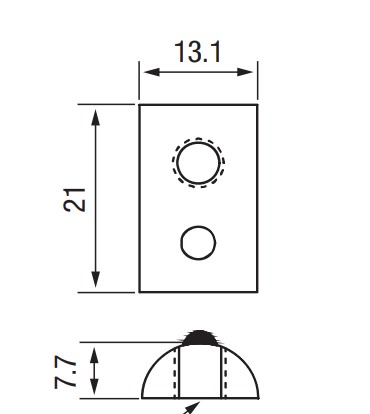

Dimensions

3D File Download

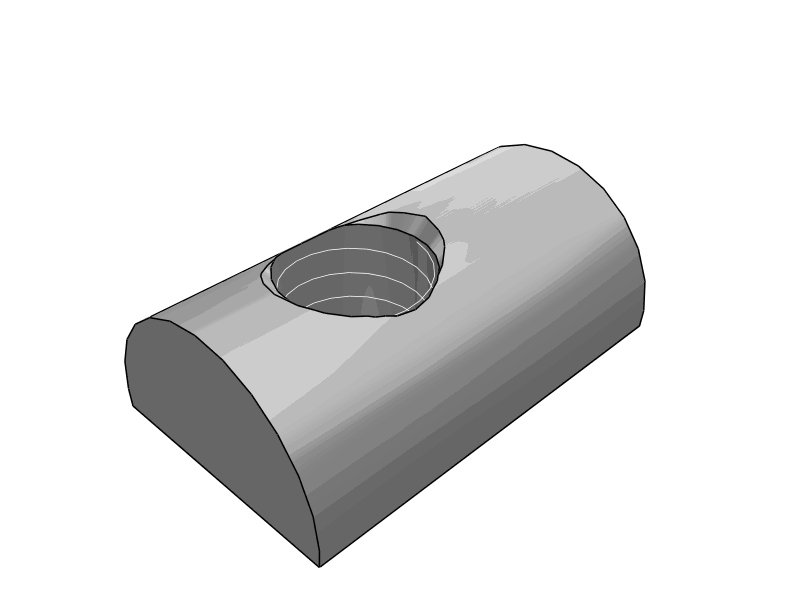

Click on the image below to download the 3D File

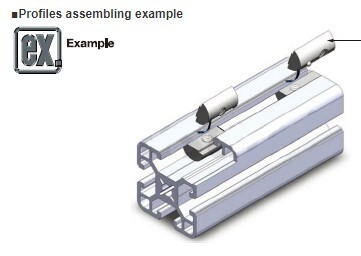

How to use

• These are used during assembly or after assembly on extrusions which are vertical.
• The spring prevents them from sliding under the force of gravity, hence making them quite handy in applications where you do not want movement of T nuts.
• To move these, simply push down on the T nut and slide.
