Sheet Metal Square Joining Plate For 20 Series
Compatible with - 20 Series V Slot & T Slot Aluminum Extrusion Profile (2020, 2040, 2060, 2080, C beam)
It can be used as reinforcement for frame fastening. Sheet metal plates are used for necessary points, such as when reinforcement is necessary for fastening parts (bracket fastening, bolt fastening, joint fastening).
Specifications
Shape - Square
Material - Steel
Thickness (T) - 2.3mm
Weight - 21gms
Surface Treatment - Trivalent Chromate
Applicable Screws - SHCS/BHCS M5 x 10mm

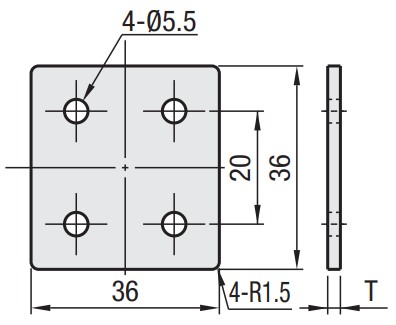

Dimensions
3D File Download
Click on the image to download the 3d file.
Fasteners & T Nuts (Optional)
If you buy fasteners & T nuts from the options you will receive the following items
1) SHCS M5 x 10mm - 04pcs
2) M5 Drop in T nut for 2020 - 04pcs
