SBR30 Linear Guide Rail

SBR30 Linear Guide Rail Without Block

Overview:

The SBR30 Linear Guide Rail is a high-performance & low cost solution for precision motion systems, providing smooth and accurate linear motion in a variety of applications.

Built from durable materials and designed to handle heavy loads. The SBR30 Linear Guide Rail is engineered for professionals who need precision, durability, and long-term reliability.

Whether you're upgrading your machinery or building a new system, the SBR30 rail ensures smooth and efficient operation, reducing maintenance and downtime.

Maximum continuous length available - 4 meter.

Please contact us in case of custom length requirement or bulk purchase for better shipping options.

Applications:

• CNC Machines
• 3D Printers
• Robotics
• Automation Equipment
• Industrial Machinery

Key Features:

• Material: Hardened steel rail for enhanced durability and longevity.
• Rail Diameter: 30mm, ensuring stability and precision.
• Smooth Operation: Polished surface and low friction for fluid, noise-free movement.
• Load Capacity: Suitable for both light and heavy-duty applications, ensuring reliability under demanding conditions.
• Corrosion Resistant: Coated for protection against rust and wear, extending the lifespan of the rail. Excluding the ends for shafts.
• Mounting Holes: Pre-drilled mounting holes for easy installation

Technical Specifications

1) Length Available : 250, 500, 1000, 1500, 2000, 2500, 3000, 3500, 4000mm

2) Diameter of Shaft : 30mm

3) Shaft Material : Hardened Steel

4) Surface Finish of Shaft : Polished

5) Mounting holes on shaft support : 6.6mm

6) Mounting holes on block : M8

7) Weight Per Meter of Rail : ~7.40 kg

8) Weight of Sliding Block SBR30UU : ~ 630 gms

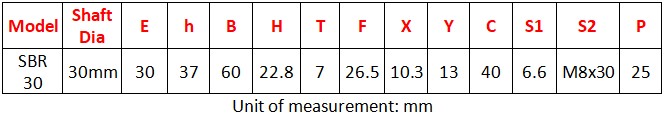

Dimensional Drawing

Download 3D File

Click here to download 3d file in step format for SBR30 linear guide rail.

Optional Purchase

Sliding Block for SBR30 Rail - SBR30UU

This is an optional part.

If you don't need the SBR30UU block then please select "Not Required" in "Sliding blocks for SBR30 rail".
