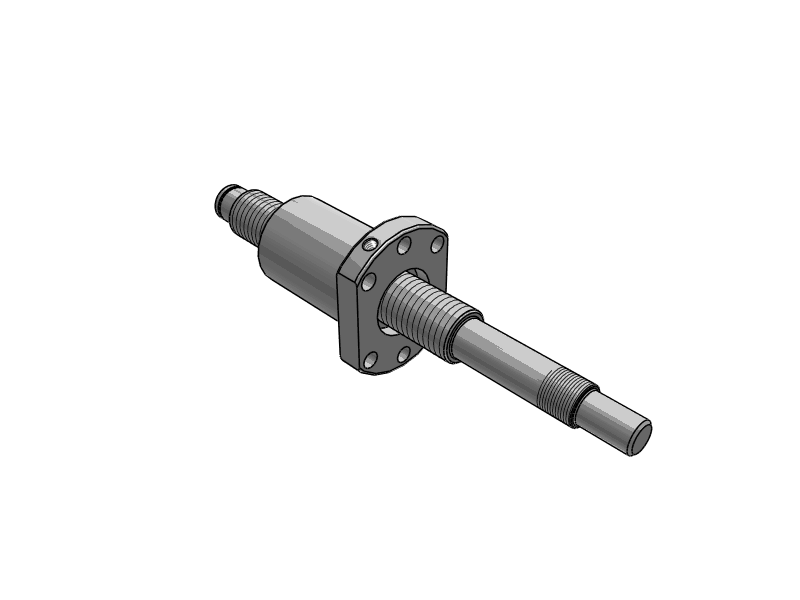

Rolled Ball Screw 12mm (With Pre Machined Ends)
Product Details
Dispatch Time: 10-15 days from the date of order and payment
Courier Used: Delhivery/Bluedart/Smartr
GST(Tax): 18% Extra (on checkout)
Rolled Ball Screw 12mm (With Pre Machined Ends + Ball Screw Nut)
1. This is a C7 rolled Ball Screw without pre-pressure suitable for a feeding mechanism requiring multi-point positioning.
2. Ball Screw Standard nuts are adopted to meet the requirement of space saving.
3. The shaft end of screw is pre machined as per standard specifications (given below), so it can be used directly with the support unit.
4. When used in combination with support unit set, it has a better effect.
Technical Specifications of Ball Screw
1) Type : Rolled
2) Accuracy Grade : C7
3) Flange Type : Round Shape, 2 Set Screw Flats at both ends
4) Dia : 12mm
5) Lead/Pitch : 4mm
6) Shaft End Type : EK Type
7) Lead Twisting Direction : Right Handed
8) Screw Material : S55C Steel
9) Hardness : 58 ~ 62HRC (high frequency quenching)
Technical Specifications of Nut
1) Material : SCM420
2) Hardness : 58 ~ 62HRC (high frequency quenching)
Travel Length Available
OVL = Over all length , TVL = Travel Length
Minimum OVL we provide = 150mm, Maximum OVL we can provide = 800mm
If you have any other custom length requirement between 150 to 800mm please let us know. We can provide any cutlength between 150 to 800mm.
Travel length of ball screw as per the Over all length (L) selected from the options.
OVL = Over all length , TVL = Travel Length
1) OVL 150mm = TVL 89mm
2) OVL 350mm = TVL 289mm
3) OVL 565mm = TVL 504mm
4) OVL 800mm = TVL 739mm
Support Unit Set For 12mm Ball Screw (Square Shape)

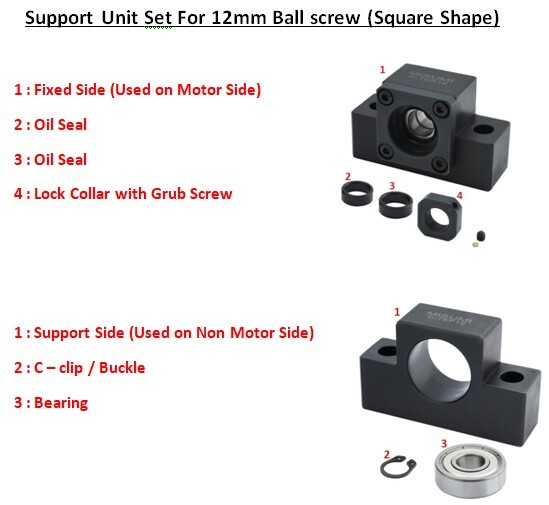

Support unit set for 8mm ballscrew consists of two parts as mentioned below. Support set is used for mounting the ballscrews. See detailed image given below.
1) Fixed Side (Used on Motor Side) - 01 piece
2) Support Side (Used on Non Motor Side) - 01 piece
You can buy support unit set separately as well - Click here
Mounting Method For Support Unit Set

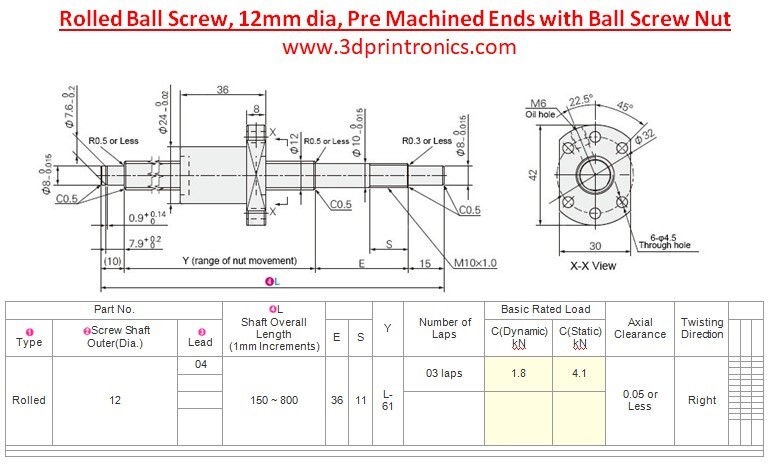

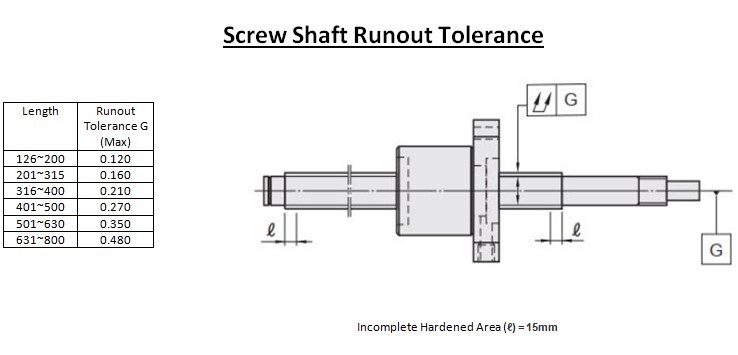

Dimensional Drawing Of Ball Screw
What Will You Get
1) Ballscrew of Selected Overall Length (L) - 01pc
Pre machined ends
2) Ballscrew Nut - 01pc
