MISUMI T Slot Aluminium Extrusion 4545 Half Round
Product Details
Brand: MISUMI
Dispatch Time: 2 to 3 working days
Delivery Time: 4 to 5 working days
Courier Used: Delhivery/Bluedart/Smartr - By Road
GST(Tax): 18% on checkout

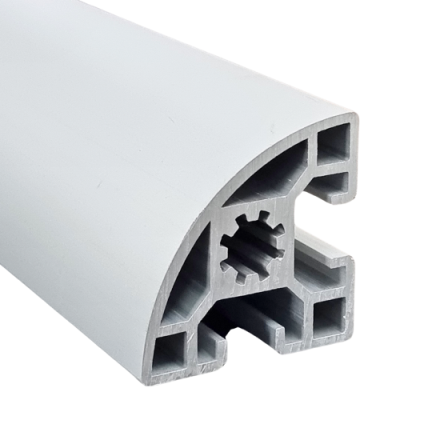

Misumi T Slot Aluminum Extrusion 4545 Half Round

Free Custom Cutting | Secure Packaging | Free Shipping | Made & Supported in India


Important Specifications

  • Aluminium alloy 6063-T5, Clear anodised, 10mm slot width, One slot per side, Total 2 slots.
  • Weight - 1.649 kg per meter, Wall thickness (t) - 2mm, Maximum length we can ship - 4 meter.
  • Precise Custom cutting of all lengths ordered can be done on request. Example - If you order 2 pcs of 1000mm, you can get them precisely cut Free of cost into 4 pcs of 500mm or any lengths you need. Just mention in order comments or mail us after order placement.
  • For longer than 1 meter lengths (upto 4 meters), contact us on on 9990838500, 9953505143 or 3dprintech@gmail.com
  • These are the best quality T slots from an international brand MISUMI. Such high quality T Slots are suitable for making machines like 3d printers, CNC, laser, plasma Or for making structures like frames, tables, cabinets etc.
  • These aluminum frames with a groove width of 10mm, a side length of 40mm, and two rows of groove is suitable for structure of small hoods, cabinets, and display bars.


The 3DPrintronics Advantage - Services Available

  • Free Custom Cutting, Free Shipping, Secure Packaging
  • 45 degree cuts - Rs. 120 per cut.

Dimensions



Accessories which are used with these profiles.

A) T nuts which can be used with this profile -

1) Drop In T Nut for 45 Series Aluminium Extrusions (M8)

2) Spring T Nut for 45 Series Aluminium Extrusions (M8)

3) Pre Insertion T Nut for 45 Series Aluminium Extrusions (M8)


B) Screws which can be used with this profile -

1) M8 Button Head Cap Screw (Select length as 16 mm for use with 4545 brackets)

2) M8 Socket Head Cap Screw (Select length as 16 mm for use with 4545 brackets)

3) Use M8 washers with M8 Socket head cap screws.


C) Corner bracket which can be used with this profile -

1) Corner Bracket for T Slot (4545)


D) Slot Cover for this profile - Click here

E) Pvc End Cap - Click here



Advantages of Using Our Profiles

  • Straightness - These T slot profile are as straight as it can get. Bent or twisted profiles is a clear no go for the frame which will make the entire frame skewed. These profiles have minimum deviation.
  • Precise cut lengths - We offer exact cut lengths as per your design. We use high end industrial cutting machines for cutting these profiles instead of using a hand grinder, chopsaw or a hacksaw. CUTTING SERVICE IS FREE.
  • 90 degree cuts - This is the most important aspect when working with aluminium profiles. If the profiles are not cut at exactly 90 degree one can never get a perfect joint between two profiles and this will make the entire frame skewed. We offer perfect 90 degree cuts using our industrial aluminium profile cutting machines.
  • Clean cuts - Our profile ends have extremely clean cuts without any burrs or melted aluminium sticking on the face. Clean cuts allow for a better join between the profiles.
  • Load Capacity - These profiles offer much better load capacity as compared to other non standard profiles. These profiles will be able to handle the stress forces generated during high speed movement of machines like 3d printers, CNC, laser etc.
  • Clear Anodized - All these profiles are clear anodized with uniform finish. Our profiles have smooth finish, they don't have any scratches, dents or marks like cheap aluminium profiles which are available in the market.
  • Secure packaging - All our profiles are packed with high quality corrugated industrial packing material. They are properly shrink wrapped to avoid any scratches or marks.
  • Free replacement - All your packages are completely secured by us. Any in transit damage is fully and freely replaced by 3dprintronics. We take full responsibility of the your order till it is delivered safely at your place.

Have questions? Contact us on 9990838500, 3dprintech@gmail.com
