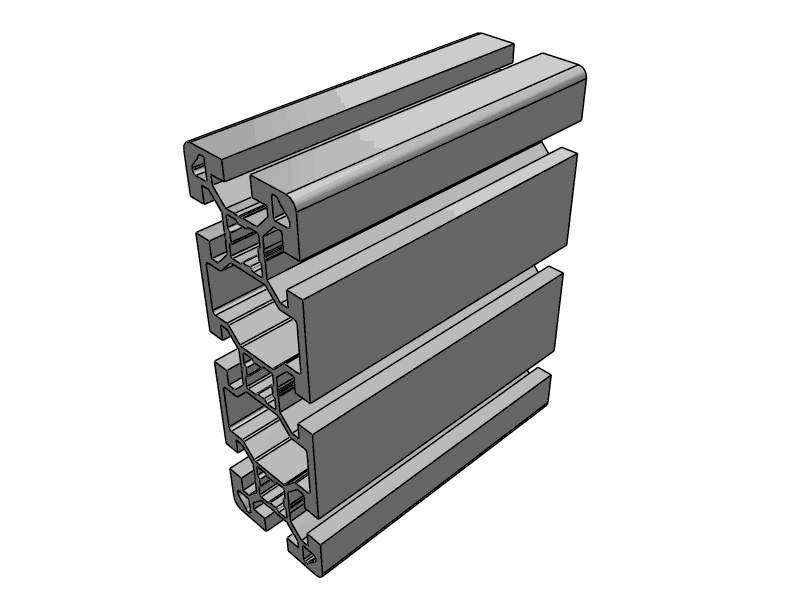

MISUMI T Slot Aluminium Extrusion 40 x 120mm

MISUMI T Slot Aluminium Extrusion 40 x 120mm

For any information, please contact us on email - 3dprintech@gmail.com, Whatsapp/Call - 9990838500, 9953505143

We can ship maximum continuous length of 2.5mtr for this profile

These are the best quality T slots from an international brand MISUMI. Such high quality T Slots are suitable for making machines like 3d printers, CNC, laser, plasma Or for making structures like frames, tables, cabinets etc.

Technical Specifications

1) Cross Section : 40mm x 120mm

2) Material : Aluminium alloy A6063S -T5

3) Anodized (surface treatment) : Yes (Clear)

4) Groove(Slot) width : 10mm

5) Number of slotted surfaces : Four Side Slots

6) Number of extrusion slots : 1 slot x 3 slots

7) Extrusion shape : Rectangle

8) Weight per meter : 3.98 kg

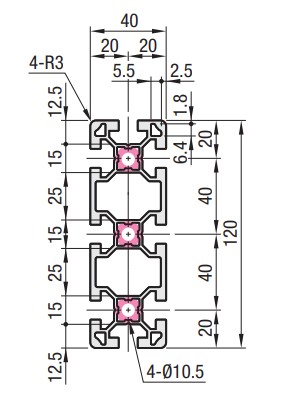

Technical Drawing

Download 3D File

Click on the image below to download 3d file

Accessories

T nuts which can be used with this profile -

1) Drop In T Nut for 45 Series Aluminium Extrusions (M8)

2) Spring T Nut for 45 Series Aluminium Extrusions (M8)

3) Pre Insertion T Nut for 45 Series Aluminium Extrusions (M8)

Screws which can be used with this profile -

1) M8 Button Head Cap Screw (Select length as 16 mm for use with 4545 brackets)

2) M8 Socket Head Cap Screw (Select length as 16 mm for use with 4545 brackets)

3) M8 washers with M8 Socket head cap screws.

Advantages of using MISUMI T Slots -

1) Straight profiles - These T slot profile are as straight as it can get. Bent or twisted profiles is a clear no go for the frame which will make the entire frame skewed. These profiles have minimum deviation.

2) Perfect cut length - We offer exact cut lengths as per your design. We use high end industrial cutting machines for cutting these profiles instead of using a hand grinder, chopsaw or a hacksaw. CUTTING SERVICE IS FREE.

3) 90 degree cuts - This is the most important aspect when working with aluminium profiles. If the profiles are not cut at exactly 90 degree one can never get a perfect join between two profiles and this will make the entire frame skewed. We offer perfect 90 degree cuts using our industrial aluminium profile cutting machines.

4) Clean cuts - Our profile ends have extremely clean cuts without any burrs or melted aluminium sticking on the face. Clean cuts allow for a better join between the profiles.

5) Load Capacity - These profiles offer much better load capacity as compared to other non standard profiles. These profiles will be able to handle the stress forces generated during high speed movement of machines like 3d printers, CNC, laser etc.

6) Clear Anodized - All these profiles are clear anodized with uniform finish. Our profiles have smooth finish, they don't have any scratches, dents or marks like cheap aluminium profiles which are available in the market.

7) Secure packaging - All our profiles are packed with high quality corrugated industrial packing material. They are properly shrink wrapped to avoid any scratches or marks.

8) Free replacement - All your packages are completely secured by us. Any in transit damage is fully and freely replaced by 3dprintronics. We take full responsibility of the your order till it is delivered safely at your place.

If you have any questions please feel free to contact us on 9990838500, 995305143 or 3dprintech@gmail.com
