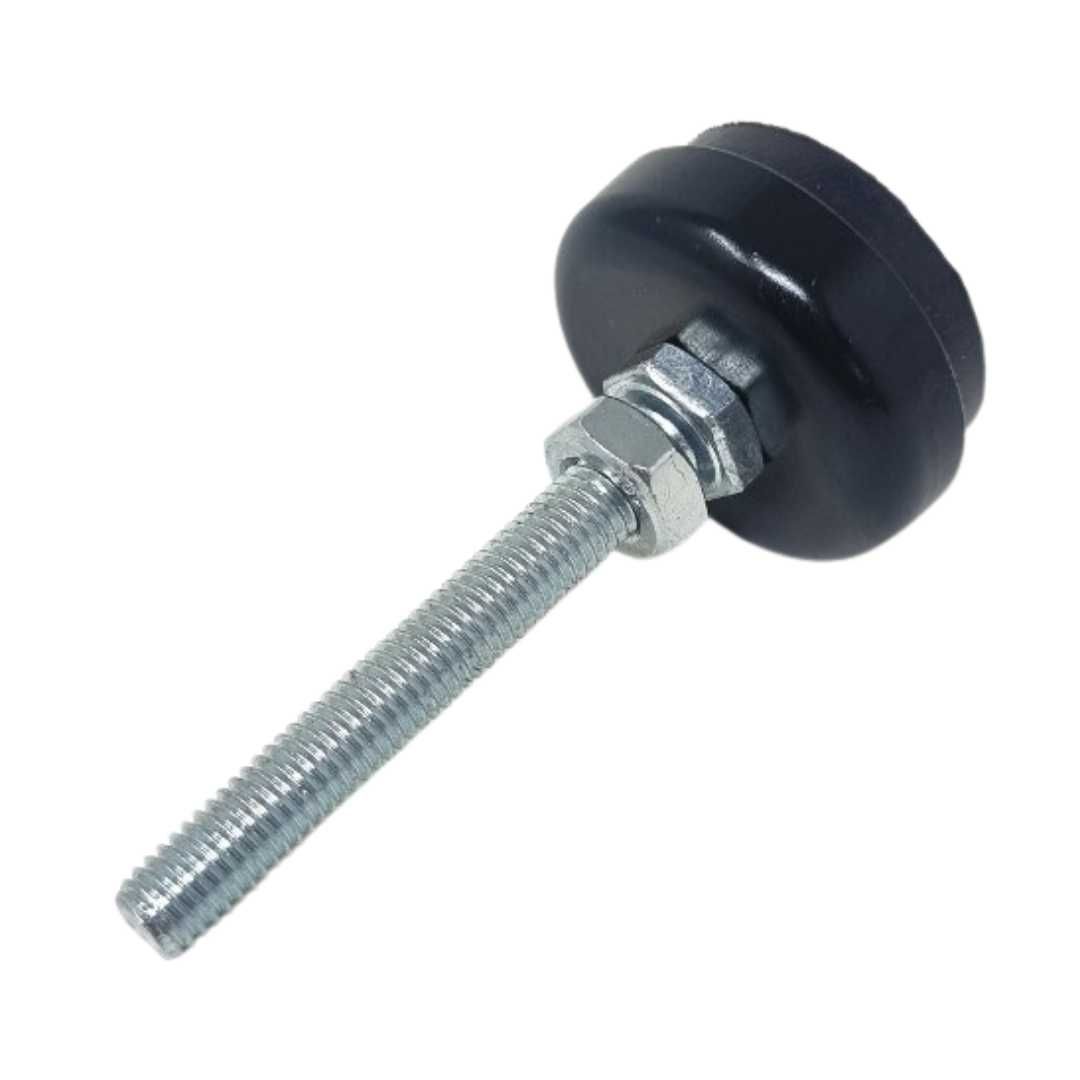

Levelling Mounts For 30 & 40 Series Profiles
SKU 01025
₹249.00
Select Qty
In stock
1
Save this product for later
Levelling Mounts For 30 & 40 Series Profiles
Product Details
Brand: MISUMI
Dispatch Time: 4 to 5 working days
Delivery Time: 2 to 3 working days
Courier Used: Delhivery/Bluedart/Smartr
GST(Tax): 18% on checkout
| Type | [Adjusting Bolt] Adjusting Bolt Type | Adjusting Bolt Shape Type | Rubber Foot Type |
|---|---|---|---|
| Height Adjusting Handle | Not Provided | Thread Material | [Steel] Steel |
| Thread Surface Treatment | Zinc Plating | Body Material | [Steel] Steel |
| Main Body Surface Treatment | Black Plating | Width D(mm) | 40 |
| Allowable Load (Details)(kN) | 3.5 | Screw Length A(mm) | 60 |
| Main Body Height E(mm) | 82.5 | Nominal of Thread M(mm) | 8 |
Economy series Adjuster Standard type with glue
An adjuster with high quality, cheap price and excellent cost performance
Usage Method
Recommended adjuster mounting method
On the premise of ensuring safety, raise the equipment with a forklift (light equipment can roll the equipment sideways) to a height that is convenient to screw into the inner teeth.
Screw in the adjuster through threads. After assembling the required number of adjusters, lower the forklift and adjust horizontally.
Precautions
1. Check whether the screw can be mounted with female thread (it is recommended to re-tap after coating the threads).
2. The selection adjuster should be screwed in more than half of the thread as far as possible (the shorter thread screwed in, the greater the bearing capacity).
On the premise of ensuring safety, raise the equipment with a forklift (light equipment can roll the equipment sideways) to a height that is convenient to screw into the inner teeth.
Screw in the adjuster through threads. After assembling the required number of adjusters, lower the forklift and adjust horizontally.
Precautions
1. Check whether the screw can be mounted with female thread (it is recommended to re-tap after coating the threads).
2. The selection adjuster should be screwed in more than half of the thread as far as possible (the shorter thread screwed in, the greater the bearing capacity).
3. For heavy equipment, it is recommended to add lubricating grease to threads for easy adjustment.
Use these levelling mount with -
MISUMI T Slot Aluminium Extrusion 4040
T Slot Aluminium Extrusion 3030
