Guide Shaft Straight Type (5mm)
Product Details
Brand: 3DPrintronics
Payment Terms: 100% Advance
Dispatch Time: 8 to 10 working days
Delivery Time: 3 to 4 working days
Courier Used: Delhivery/Bluedart/Smartr
GST(Tax): 18% on checkout

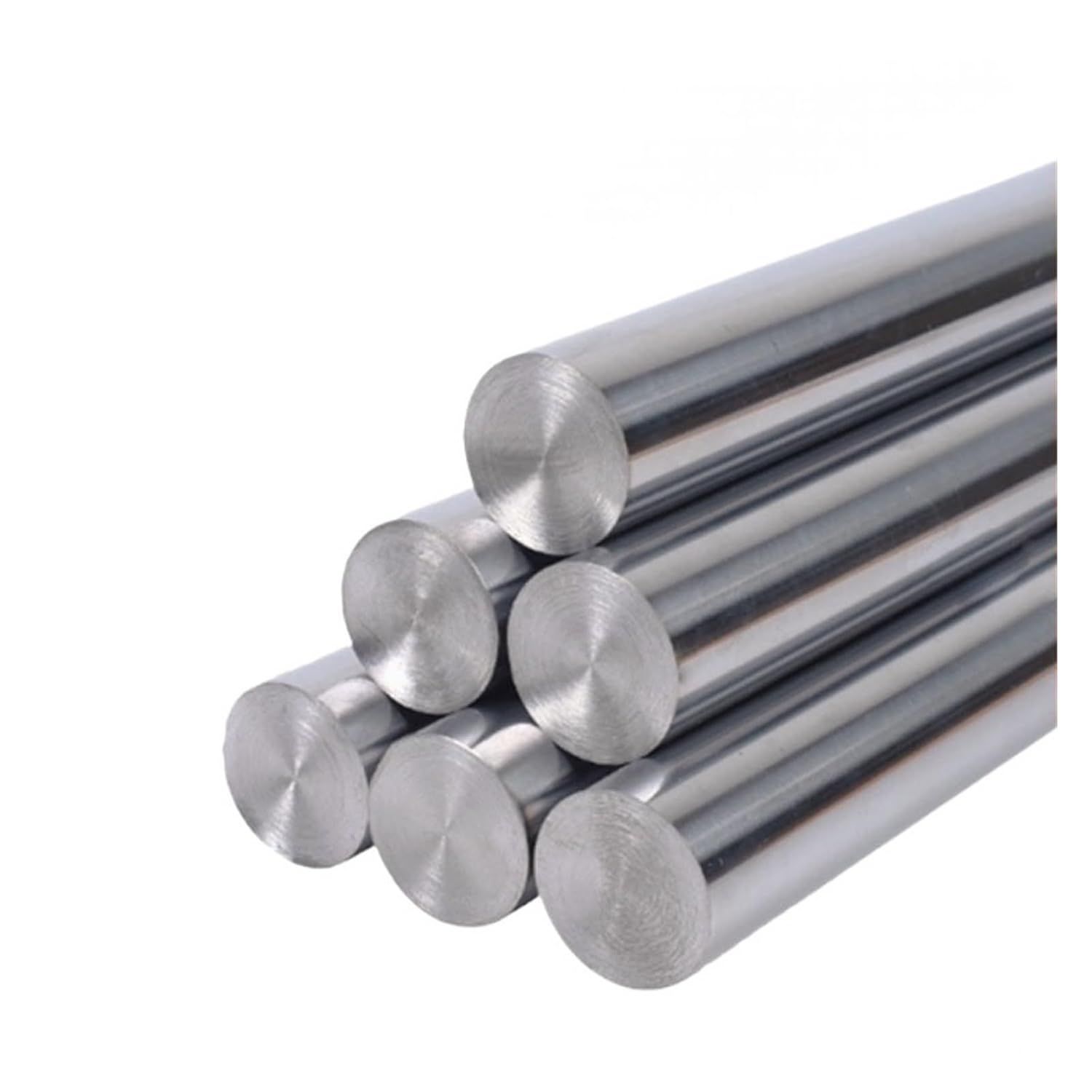

Guide Shaft Straight Type
High Quality smooth guide shaft for CNC machines, 3D Printers, Laser cutter etc.
Lead time to ship out these shafts is 8-10 Days. Please plan your order accordingly
Shaft Dia Available
5mm
Maximum Continuous Length We Can Ship
500mm
Customised Cut Lengths
We can provide any cut-lengths apart from what is mentioned on our website. You can contact us for customised cut lengths .
Dimension Drawing
Basic Information
| Basic Shape | Solid | End Shape (Left) | No Machining | End Shape (Right) | No Machining |
|---|---|---|---|---|---|
| Shaft End Perpendicularity | Perpendicularity (0.2) | Material | S45C | Heat Treatment | Induction Hardened |
| Surface Treatment | Hard Chrome Plating | Shaft Fit Tolerance | g7 |
Specifications
■Material Specification
| D Tolerance |  Equivalent Material |
 Hardness |
 Surface Treatment |
|
| g7 | GB：45 JIS：S45C |
55HRC～ | High Frequency Quenched For effective hardening layer depth |
Hard Chrome Plated Plating hardness: HV750～ Plating thickness: 3μ or more |
The hardness of shaft end machined part may be reduced due to the annealing effect of machining.
If there are requirements for rust prevention, please give priority to the hard-chrome plated products.
■ Dimension Specification
 Shaft Dia. D (φ) |
Tolerance g7 |  Length L1mm increments |
C |
| 6 | -0.004 -0.016 |
20～ 600 | Below 0.5 |
| 8 | -0.005 -0.020 |
20～ 800 | |
| 10 | |||
| 12 | -0.006 -0.024 |
20~1000 | |
| 13 | 25~1000 | ||
| 16 | 30~1200 | ||
| 20 | -0.007 -0.028 |
Below 1.0 | |
| 25 | 35~1200 | ||
| 30 | 35~1500 |
