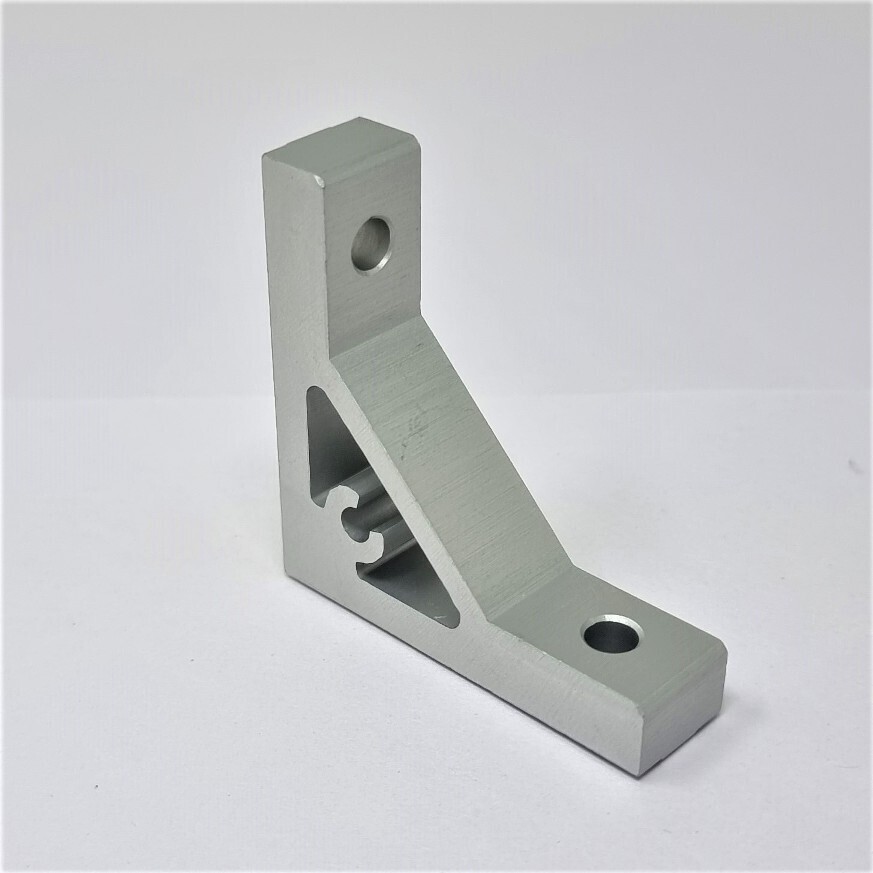

Extruded Bracket (HBKTST8) Misumi
These are extruded brackets made of fine quality aluminium.
These brackets are compatible with MISUMI T Slot Aluminium Extrusion 4040 (4 Slots)
The brackets have tabs given on both the bottom sides for proper positioning or fitting on the profile slot.
Available in CLEAR anodized. We can not provided BLACK anodized in this bracket.
Chamfered for smooth edges.
These brackets are extremely rigid and provides a solid joint between the profiles.
Extruded bracket guarantees perpendicularity as they have been machined perpendicularly.
Link of compatible items with this bracket
1) MISUMI T Slot Aluminium Extrusion 4040 (4 Slots)
2) Drop In T Nut for 40 Series Aluminium Extrusions (Use M8 T Nuts)
Please contact us for bulk quantity purchase
Bracket Tape | Extruded Brackets | Screw to be used with this bracket | M8 |
---|---|---|---|
Material |
A6N01SS-T5 | Number of the Applicable Slots | 1 Slot |
Tab Position | Tabbed at Both Sides | Additional Functions (Extruded Bracket) | Standard |
Perpendicularity | Outside Corner Provided | ||
Surface Treatment | Clear Anodize | ||
Extrusion Size |
For 4040 |
Image is only for visual representation. Final product may or may not differ in appearance.
