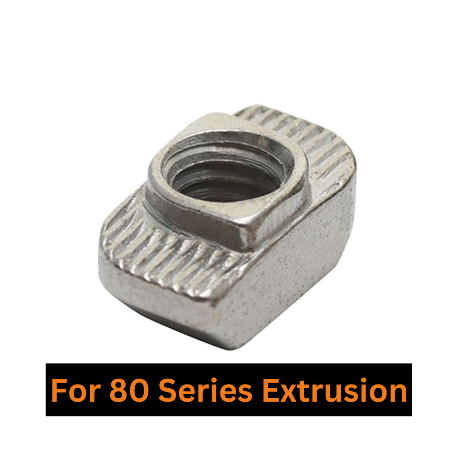

Drop In T Nut for 80 Series Aluminium Extrusions

Drop in T Nut for 80 Series Aluminium Extrusions

• Compatible With : MISUMI T Slot Aluminium Extrusion 8080, MISUMI T Slot Aluminium Extrusion 4545, Other generic T Slot Aluminium Extrusions with groove width 10mm.
• Thread Sizes Available : M4, M5, M6, M8
• Material : Carbon Steel
• Surface Treatment : Nickel Plated (Anti Rust)

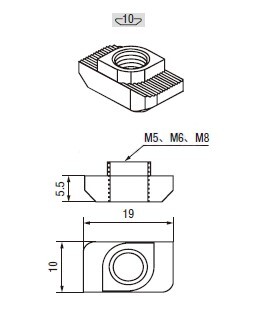

Dimensions

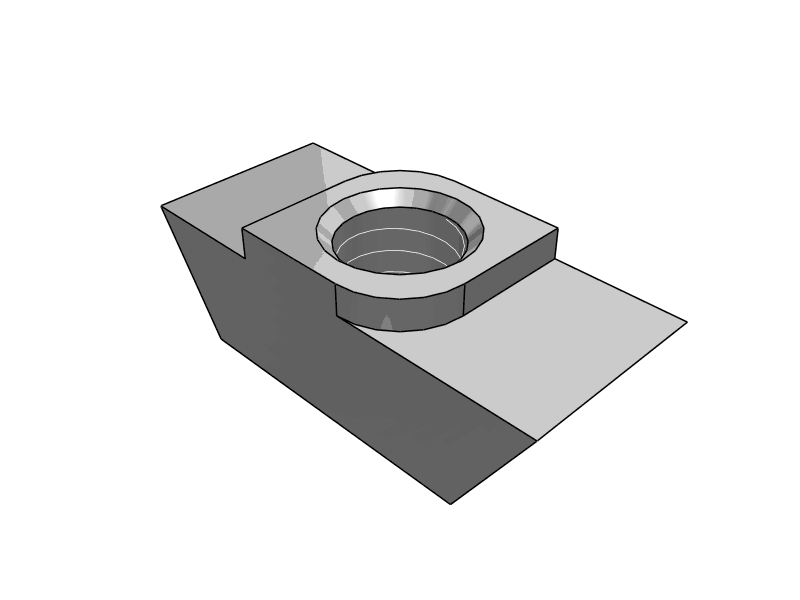

3D / Step File Download

Use the 3d file directly in your CAD design & get rid off any guess work.

Click on the image below to download the file.

How to use best

• These are drop in T nuts. They can be used while doing assembly or can be dropped in to the slot any time after completion of assembly (best suited for this)

Note

Images are only for visual representation, final product may or may not differ in appearance.

Please check T nut dimensions to avoid any confusion.

We are not responsible for fitment of these T nuts in T Slot Extrusions which are not bought from our store
