Corner Bracket for 45 Series T Slot

Corner Bracket For 45 T Slot Aluminium Extrusion

These corner braces are a must when you are working with T slot aluminium extrusion profiles. Easily join any two profiles at 90 degree angle with these sturdy, cast aluminium corner braces.

Tech Specs

• Material : Die Cast ADC12 (Aluminium)

• Surface Treatment : Sand Blasting
• Allowable Load N : 2464
• Compatible Profile : MISUMI T Slot Aluminium Extrusion 4545, MISUMI T Slot Aluminium Extrusion 4545 (Light), MISUMI T Slot Aluminium Extrusion 4590

What will you get

1) Corner bracket for 4545 T Slot - 01 pc

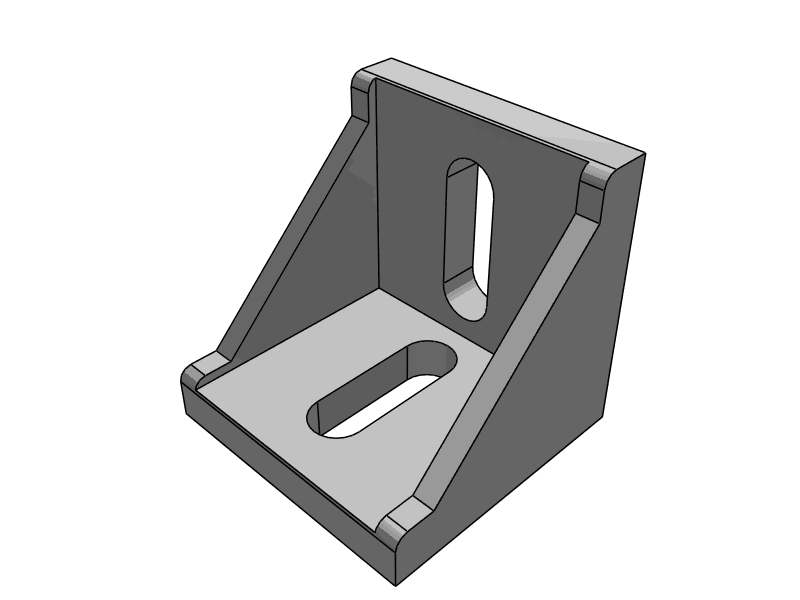

3D File Download

Use this 3d file directly in your CAD design and get rid off any guess work.

Click on the image below to download the file

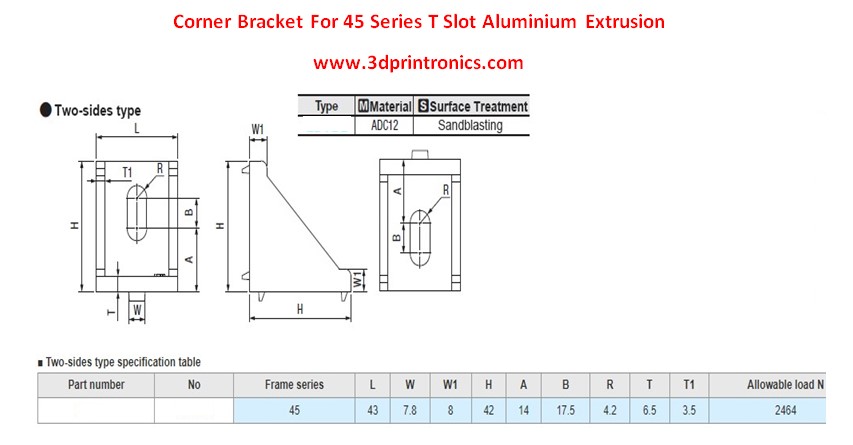

Dimension
