Name: Closed Loop Stepper Drive CS-D403 - Leadshine
Brand: Leadshine
SKU: 01193
Price: 4599.0 INR
Availability: InStock

Closed Loop Stepper Drive CS-D403 - Leadshine

Product Details

Brand: Leadshine

Dispatch Time: 3 to 4 working days

Courier Used: Delhivery/Bluedart/Smartr

GST(Tax): 18% Extra (on checkout)

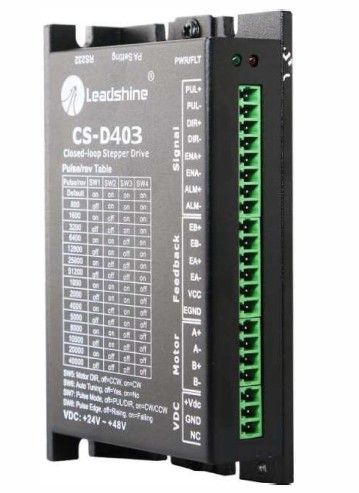

Closed Loop Stepper Drive CS-D403

Leadshine CS-D403 is a closed loop stepper drive designed to solve the loss of step problem in open loop stepper control systems, thus increase system reliability at minimal cost increase. It implements advanced control algorithm of Leadshine based on its tens of years' experience in stepper and servo controls. The CS-D403 is highly reliable and affordable and performs excellent in many industrial applications such as CNC, medical, electronics, packaging ...

The CS-D403 can power 2-phase NEMA 8, 11, 14 and 17 stepper motors with incremental encoders. Compared with traditional open loop stepper systems, a CS-D403 adopted closed loop step system can eliminate potential loss of step, make real-time position error correction, and do not need torque reservation (100% torque implementation). Also it can power the driven stepper motor with reduced heating, lower noise, low vibration.

Features

• No loss of step

• No torque reservation

• No hunting or overshooting

• No tuning for easy setup

• A configurable digital output for the option of Fault Output, In Position, or Brake Control

• Low noise and vibration, smooth motion

• Enhance performance at low speed application( <60RPM)

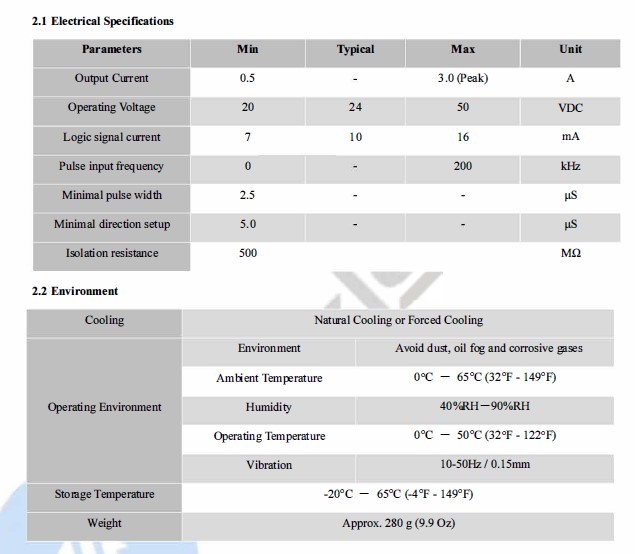

• 20-50VDC supply voltage, max 3A output current

• Max 200 KHz input frequency

• 15 micro step settings of 800-51,200 via DIP switches, or 200-51,200 via software (increase by 200)

• Protections for over voltage, over current and position following error

Application

When a CS-D403 closed loop stepper drive is implemented with a compatible stepper motor with encoder, the closed stepper system can be adopted in many small to median speed applications such as CNC routers, CNC mills, CNC laser cutters, CNC plasma, lab automation instruments, plotters, medical equipment, electronic equipment, small packaging machines, etc

Optional Parts Which Can Be Purchased With This Driver

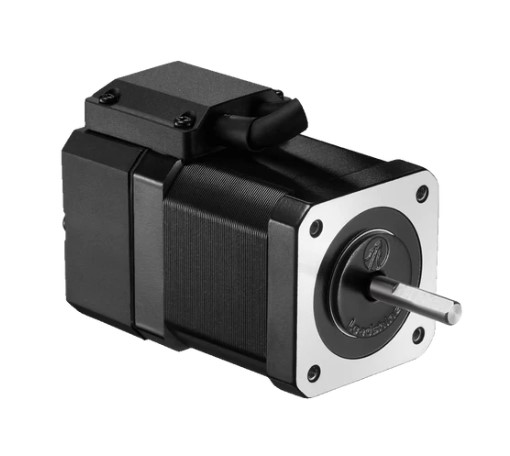

1) Closed Loop Nema 17 Stepper Motor CSM21706 Leadshine

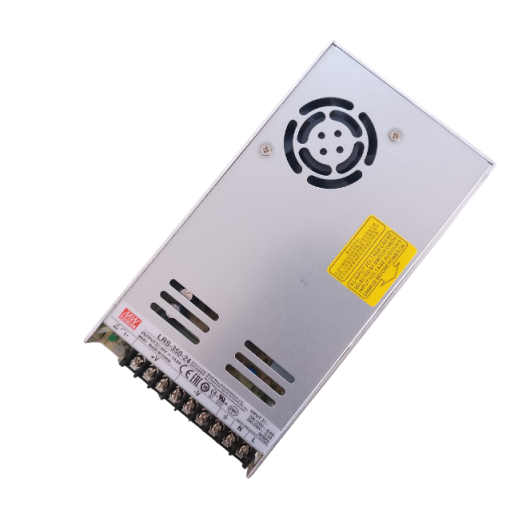

2) Original Mean Well Power Supply LRS-350-24

User Manual - Click here for detailed manual and specification

Please buy responsibly and read the specifications carefully before making the purchase.

Responsibility to use this product lies on the user. We will not able to provide assistance with respect to its usage and installation.
