Model # CSM21706

The CS-M series closed loop stepper motors are integrated with a 1,000 line (4,000 counts/revolution) or 5,000 line 20,000 counts/revolution） differential ended rotary encoder. Build with high quality materials including bearings and shaft made by famous manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.

Features of Leadshine CS-M Series-Closed Loop Stepper Motor-CS-M21706:

Dimensional Drawing

Speed Torque Curve

Data Sheet Download

Click here for Data Sheet.

3D File Download

Click here for 3D Step File of this motor. Use this exact 3d model in your designs to get rid of guess work.

Accessories (Optional Parts)

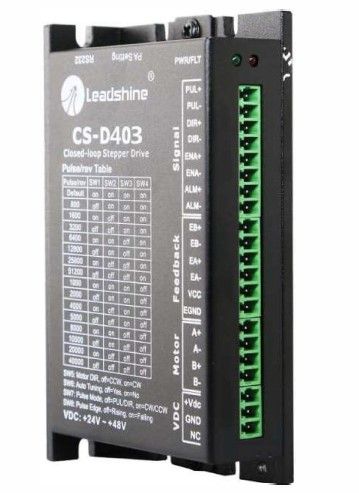

1) Closed Loop Stepper Drive C-D403

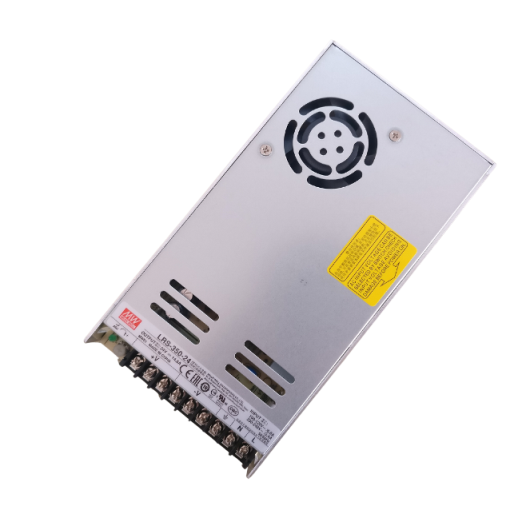

2) Original Mean Well Power Supply LRS-350-24

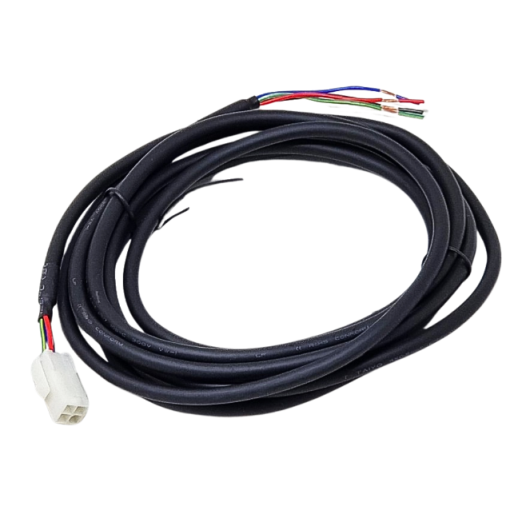

3) Motor Cable For CS-M Series Closed Loop Stepper Motors

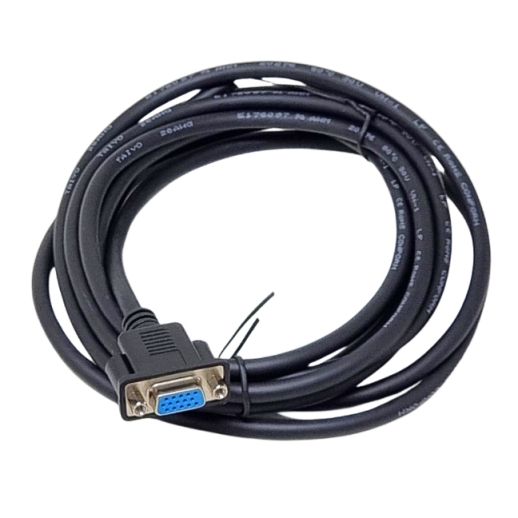

4) Encoder Cable For CS-M Series Closed Loop Stepper Motors

Please buy responsibly and read the specifications carefully before making the purchase.

Responsibility to use this product lies on the user. We will not able to provide assistance with respect to its usage and installation.
