C Beam Linear Actuator XLarge Gantry

C Beam Linear Actuator XLarge Gantry

Precise | Affordable | Modular | Open Source

Made and Supported in India

Description

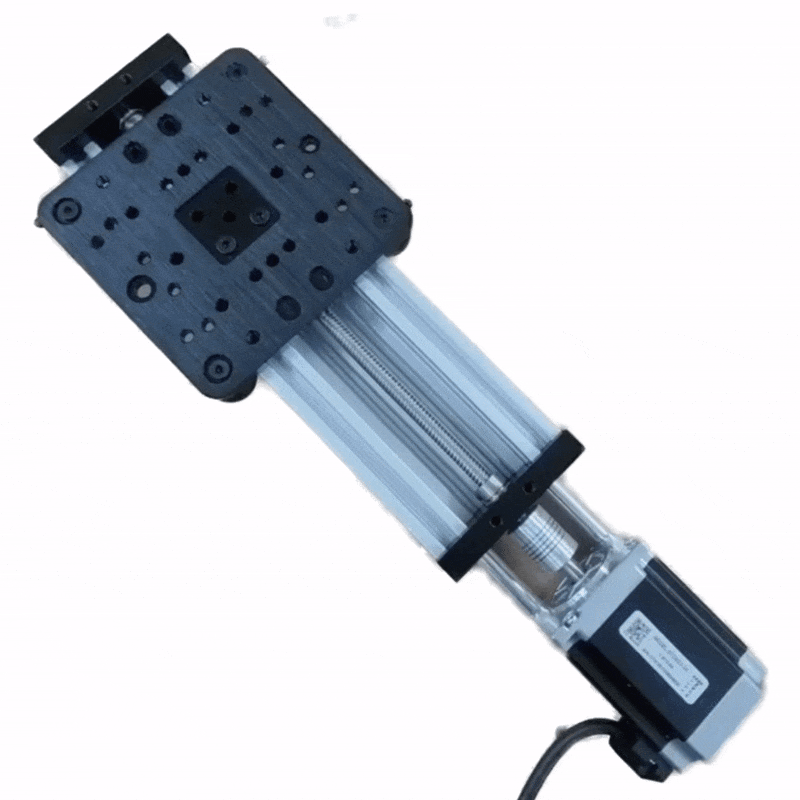

This is a very stable, precise, modular and affordable linear actuator which can be used for automation, DIY CNC/3D Printers and other cool stuff.

It is based on the C Beam Linear Rail and uses the XLarge gantry which offers a wide stance. The actuator moves using a 8mm lead screw running through an anti-backlash nut.

The included gantry cart is capable of being mounted 90 degrees to each other creating either an X/Y system or even an X/Z system for a CNC machine.

It can be easily integrated into any existing system or any new design due to the inherent modularity of the C Beam Linear Rail and the V Slot system.

Note : We provide BLACK color Delrin V Wheels instead of white PC v wheels (as shown in the pictures and video)

Technical Documentation

Click below to Download Files. Files will also be mailed to you once your checkout is complete.

1. Actuator Drawing

2. Plate Drawing

3. CAD (Step file) of Actuator (500mm Length)

Note : We provide BLACK color Delrin Solid V Wheels instead of white PC v wheels (as shown in the pictures and video)

Technical Specifications

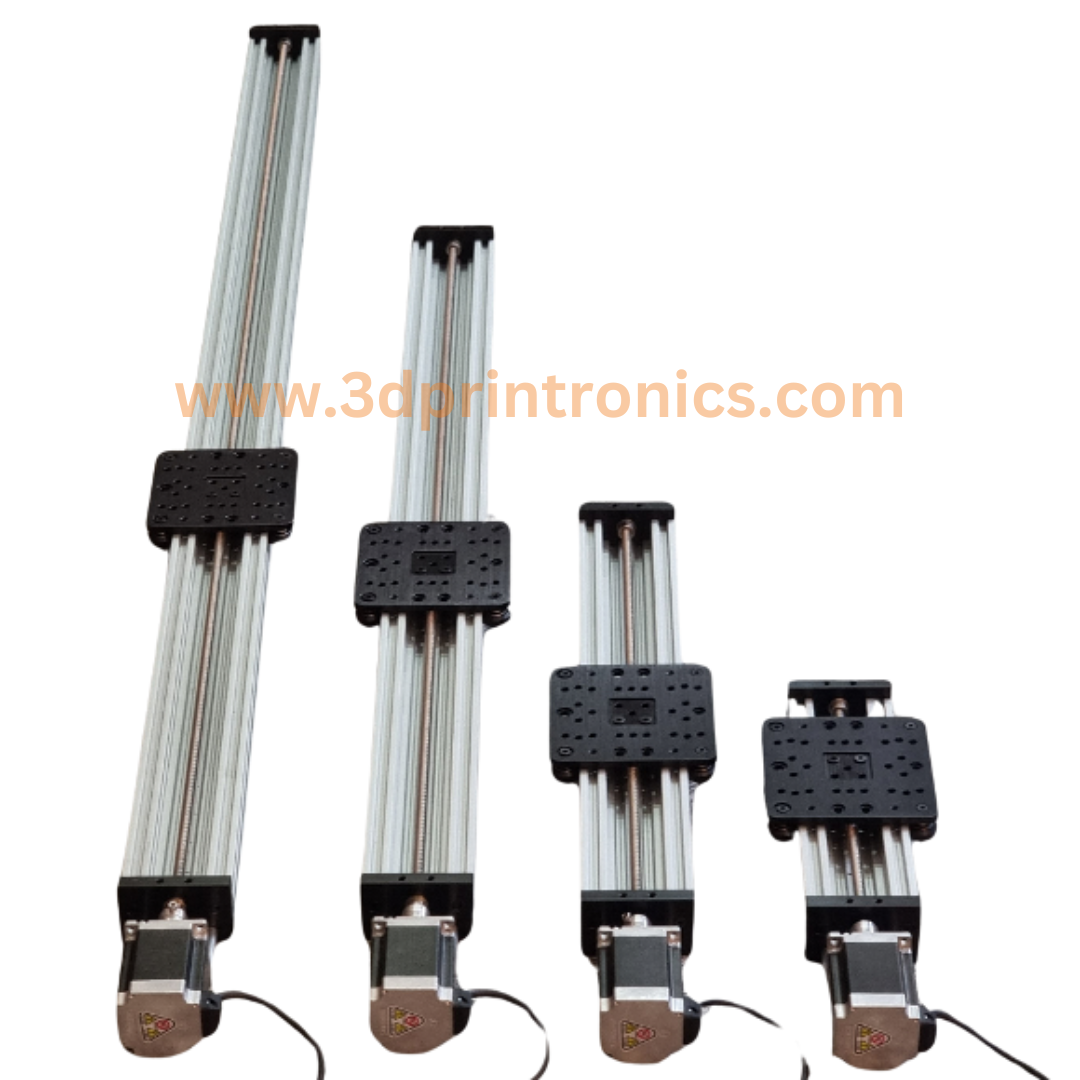

• Travel Distance - 250mm is 115mm, 500mm is 365mm, 1000mm is 885mm, 1500mm is 1365mm
• Accuracy - 0.05 mm ~ 0.10 mm
• Positioning Accuracy - ~ 0.10mm
• Max Speed - 3500 mm/min
• Drive - Leadscrew ,8mm dia, 2mm pitch, 4 start
• Total Weight of Actuators With Nema 23 Motor
  • 250mm (~2.385kg), 500mm (~3.020kg), 1000mm (~4.385kg), 1500mm (~5.560kg)
• Weight of Nema 23 Motor - 1.075kg
• Horizontal Load Carrying Capacity : ~ 48kgs
• Vertical Load Carrying Capacity : ~ 25kgs

Optional Items

• Length - What travel length of the actuator you need.
• Kit or Assembled - Do you need it in kit form or Assembled from our side.
• Nema 23 Stepper Motor - Stepper motor rotates the ballscrew to create linear motion. We offer LeadShine Nema 23 Stepper Motor with 23Kg torque. Click here to know more details about this motor.

• Stepper Driver - it is required for operating the stepper motor. A stepper motor needs a stepper driver for running it. We offer DM54E stepper driver from Leadshine. Click here to know more about it.


• Power Supply - A power supply is required for providing DC current to the Motherboard + stepper driver + stepper motor. We offer Meanwell LRS 350-24 power supply which is a 24VDC, 350 watts and 14 amps psu. Click here to know more about it.

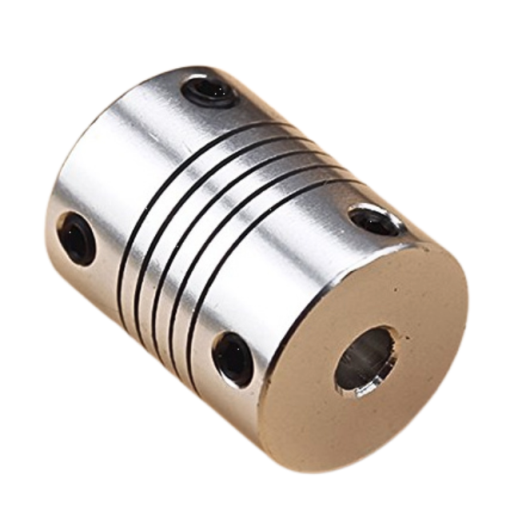

• Coupler - joins the leadscrew to shaft of the motor.We offer coupler of 8mm to 8mm size. Which joins 8mm leadscrew side to 8mm shaft of the motor.

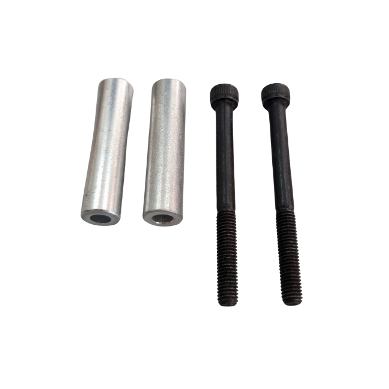

• Motor Mounting Hardware - These fasteners are used for mounting the stepper motor to the linear actuator. It includes - M5 mounting screws (SHCS M5x50mm) -02pcs & M5 Spacers of 40mm length (02 pcs)

• Openbuilds BlackBox Motion Control System X32 - It is a plug & play motherboard/controller for 3 axis motion system. It can run 4 stepper motors (X,Y & Z). No external drivers are required as it has inbuilt drivers. Just connect a power supply and stepper motors to it and start running your motors with openbuilds control software.

• Cable For Motor - Use this high quality, 4 core, shielded cable for extending stepper motor cables. These are shielded cables hence electromagnetic interference is minimal.Use these Shielded Cables for connecting your stepper motors to motherboard & Drivers.

C Beam, V Slot and all related accessories are manufactured in India as per the opensource designs of www.openbuilds.com . We are not affiliated to openbuilds in any manner.
