C Beam Linear Actuator

C Beam Linear Actuator

Precise | Affordable | Modular | Open Source

Made and Supported in India

Description

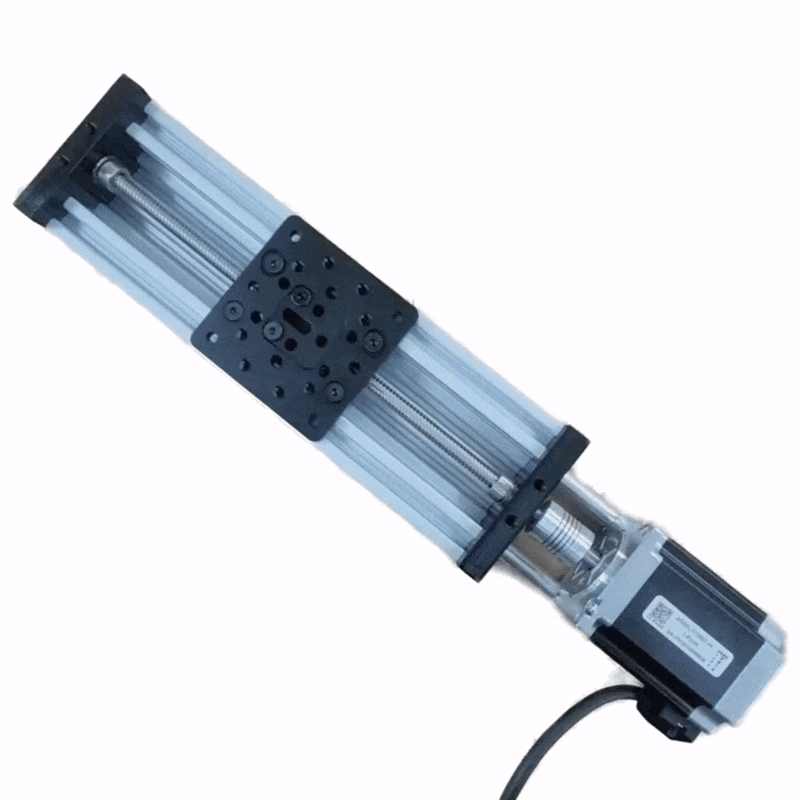

This is a very stable, precise, modular and affordable linear actuator which can be used for automation, DIY CNC/3D Printers and other cool stuff.

It is based on the C Beam Linear Rail and uses the C Beam Gantry Plate which offers large surface mounting options. Four mini wheels run inside the gantry plate and the actuator moves using a 8mm lead screw running through an anti-backlash nut.

It can be easily integrated into any existing system or any new design due to the inherent modularity of the C Beam Linear Rail and the V Slot system.

Technical Documentation

Click below to Download Files. Files will also be mailed to you once your checkout is complete.

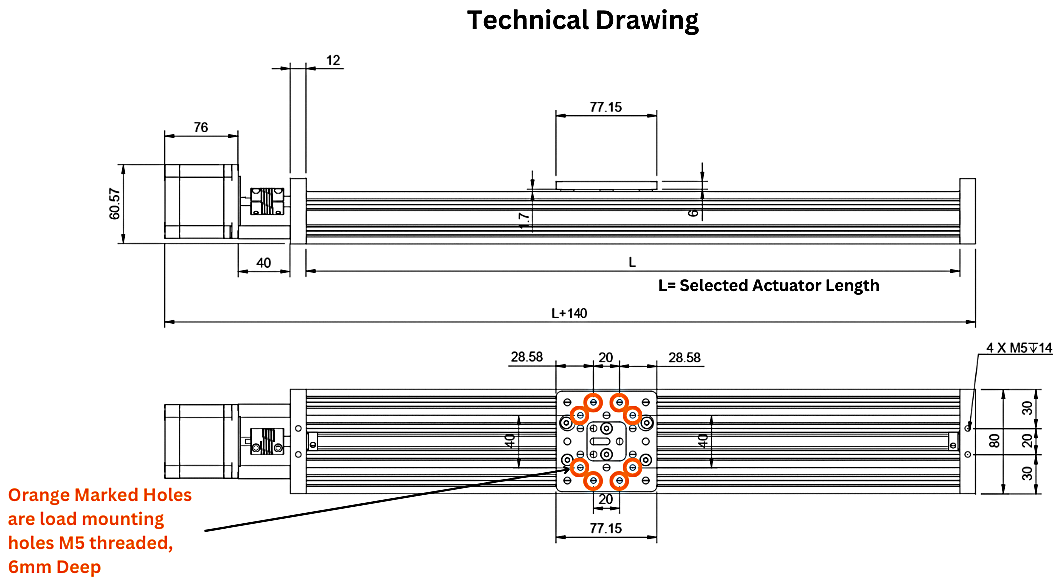

1. Actuator Drawing (pdf)

2. Plate Drawing (pdf)

3. CAD (Step file) of Gantry Plate (3d file)

4. CAD (Step file) of Actuator (250mm Length)

5. Click here for a quick online view of 3d file for this actuator (grabcad)

Technical Specifications

• Travel Distance - 250mm is 150mm, 500mm is 400mm, 1000mm is 900mm, 1500mm is 1400mm
• Accuracy - 0.05 mm ~ 0.10 mm
• Positioning Accuracy - ~ 0.10mm
• Max Speed - 3500 mm/min
• Drive - Leadscrew dia 8mm, pitch 2mm , 4 start, material SS
• Profile Used : C beam linear rail aluminium extrusion (anodized). Size 40 x 80mm. Click here for drawing of this profile.
• Motor Used : Nema 23 Stepper Motor from Leadshine. Click here for full details of the motor
• Total Weight of Actuators With Nema 23 Motor
  • 250mm (~2.206kg), 500mm (~2.290kg), 1000mm (~4.206kg), 1500mm (~5.381kg)
• Weight of Nema 23 Motor - 1.075kg
• Horizontal Load Carrying Capacity : ~ 38kgs
• Vertical Load Carrying Capacity : ~ 20kgs

Select Optional Items

• Length - What length of the actuator you need.
• Kit or Assembled - Do you need it in kit form or Assembled from our side.
• Nema 23 Stepper Motor - Stepper motor rotates the ballscrew to create linear motion. We offer LeadShine Nema 23 Stepper Motor with 23Kg torque. Click here to know more details about this motor.

• Stepper Driver - it is required for operating the stepper motor. A stepper motor needs a stepper driver for running it. We offer DM54E stepper driver from Leadshine. Click here to know more about it.


• Power Supply - A power supply is required for providing DC current to the Motherboard + stepper driver + stepper motor. We offer Meanwell LRS 350-24 power supply which is a 24VDC, 350 watts and 14 amps psu. Click here to know more about it.

• Coupler - joins the leadscrew to shaft of the motor.We offer coupler of 8mm to 8mm size. Which joins 8mm leadscrew side to 8mm shaft of the motor.

• Motor Mounting Hardware - These fasteners are used for mounting the stepper motor to the linear actuator. It includes - M5 mounting screws (SHCS M5x50mm) -02pcs & M5 Spacers of 40mm length (02 pcs)

• Openbuilds BlackBox Motion Control System X32 - It is a plug & play motherboard/controller for 3 axis motion system. It can run 4 stepper motors (X,Y & Z). No external drivers are required as it has inbuilt drivers. Just connect a power supply and stepper motors to it and start running your motors with openbuilds control software.

• Cable For Motor - Use this high quality, 4 core, shielded cable for extending stepper motor cables. These are shielded cables hence electromagnetic interference is minimal.Use these Shielded Cables for connecting your stepper motors to motherboard & Drivers.
