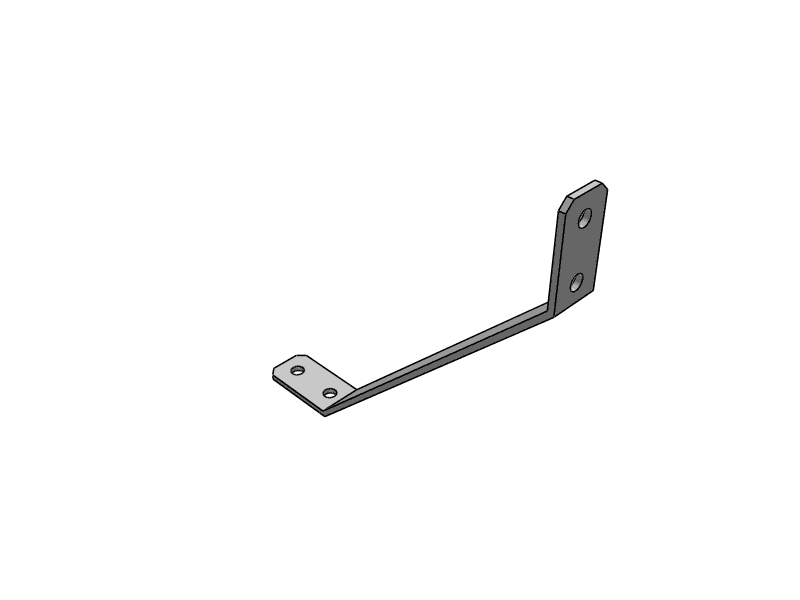

Both Ends Bent Bracket For 20 Series V/T Slot Extrusions

Both Ends Bent Bracket For 20 Series V / T Slot Extrusions

Metal plates for extruded aluminum extrusions are parts used to fasten or reinforce the frames. Types of various shapes are available for different usage objectives.

A wide range of shapes can be selected to match the connection or area for reinforcement. A 90 degree (Corner) type, L-type, bent type, T-type and Cross type are available.

The extensive array of shapes provide the versatility to enable connection methods not possible with standard brackets. Each shape is available in steel or stainless steel.

Specifications

1) Shape : Both Ends Bent

2) Material : Steel (Sheet Metal)

3) Surface Treatment : Trivalent Chromate

4) Chamfered : Yes

5) Thickness (T) : 2.3mm

6) Size : 135mm x 135mm

7) Weight : 64gms

8) Screws : SHCS / BHCS M5 x 8mm

9) Number of Joining Points : 04

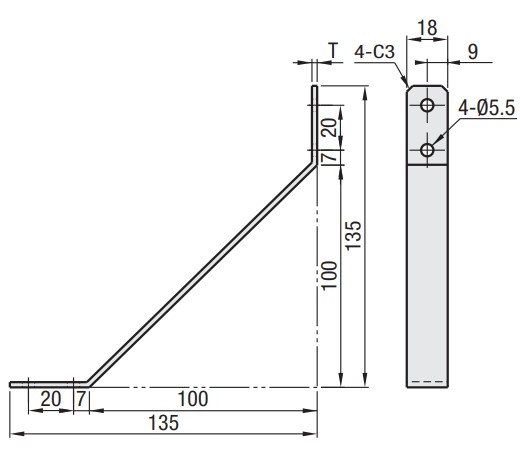

Dimensions

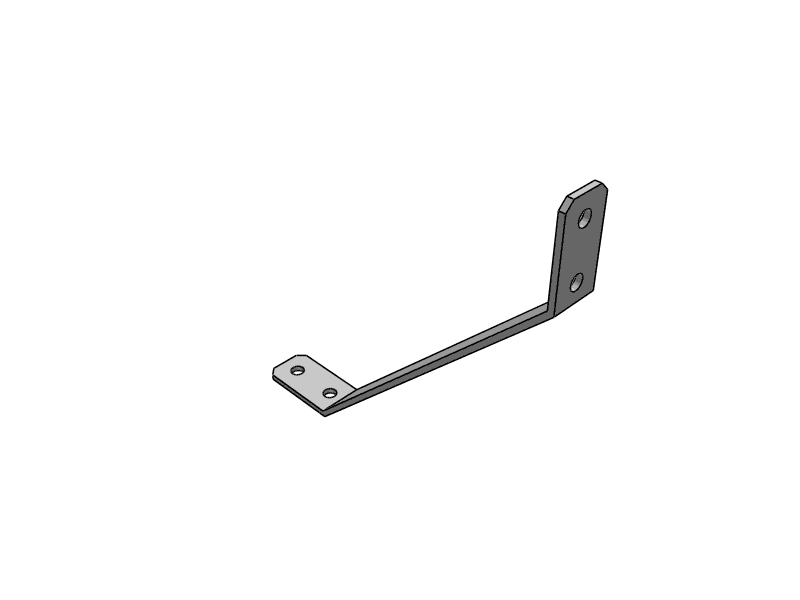

3D File Download

Click on the image below to download the 3d file

Fasteners & T Nuts (Optional)

If you buy fasteners & T nuts from the options you will receive the following items

1) SHCS M5 x 8mm - 04pcs

2) M5 Drop in T nut for 2020 - 04pcs

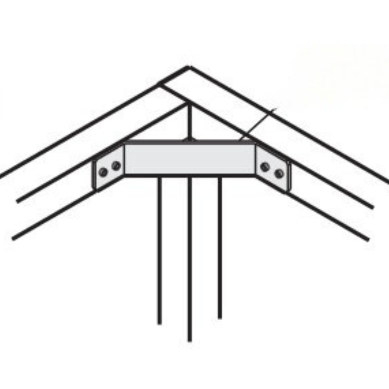

Application/Usage
