90 Degree Joining Plate For 30 Series T Slot Extrusions

90 Degree Joining Plate For 30 Series T Slot Extrusions

Metal plates for extruded aluminum extrusions are parts used to fasten or reinforce the frames. Types of various shapes are available for different usage objectives.

A wide range of shapes can be selected to match the connection or area for reinforcement. A 90 degree (Corner) type, L-type, bent type, T-type and Cross type are available.

The thin design and extensive array of shapes provide the versatility to enable connection methods not possible with standard brackets. Each shape is available in steel or stainless steel.

Specifications

1) Material : Steel (Sheet Metal)

2) Surface Treatment : Trivalent Chromate

3) Chamfered : Yes

4) Thickness : 2.3mm

5) Size : 120mm x 120mm

6) Weight : 150gms

7) Screws : SHCS/ BHCS M6 x 10mm

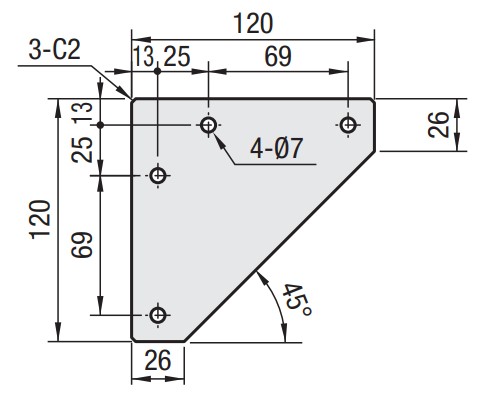

Dimensions

3D File Download

Click on the image below to download the 3d file.

Fasteners & T Nuts (Optional)

If you buy fasteners & T nuts from the options you will receive the following items

1) SHCS M6 x 10mm - 04pcs

2) M6 Drop in T Nut For 3030 - 04pcs
